Capacity: 30″ saw throat and 12 foot cut length
Engine: 14 HP Kohler manual start gas engine
Weight: 1400 LBS

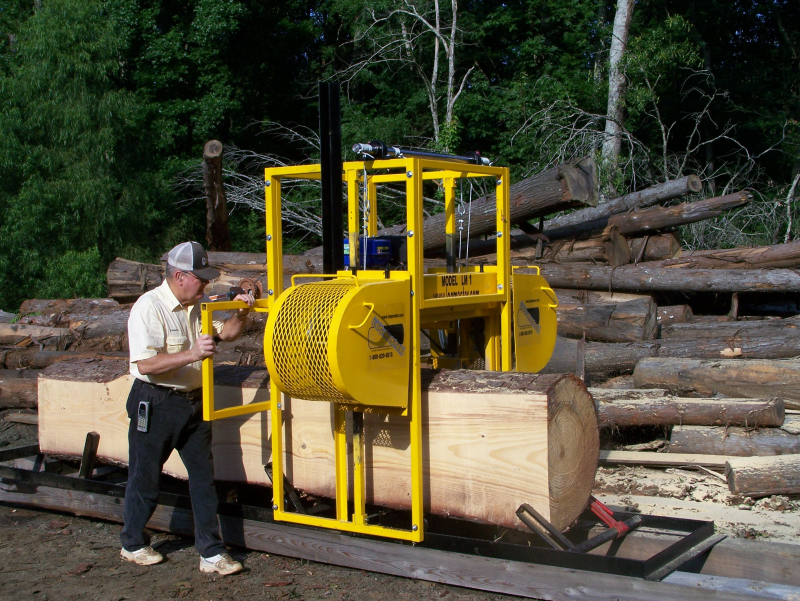

Model LM1 Portable Sawmill
THE LM 1 14 HP KOHLER POWERED SAWMILL RETAIL PRICE IS $5,783.15 discount PRICE IS $5,200.00 YOU SAVE $583.15 The LOG-MASTER Model LM 1 Portable Sawmill is a rugged, reliable, dependable and economical personal sawmill built in America today. This portable sawmill, with it’s large log capacity, is the favorite of the serious wood crafter, farmer, rancher or the people who want to make their dreams come true by building their own home. With a 30″ saw throat and 12 foot cut length (extra track section are in 6′ lengths). This is all that a do-it-yourselfer will ever need.
Click here to view or download a PDF brochure of this model.
LM 1 18 HP ELECTRIC START KOHLER ENGINE RETAIL PRICE $7,288.94 SALE PRICE $6,500.00 (SAVINGS OF $788.94).
LM 1 30 HP ELECTRIC START KOHLER ENGINE RETAIL PRICE $7,900.00 SALES PRICE $7,100.00 (SAVINGS OF $800.00)
WE BUILD TRAILERS FOR THE LM 1 SAWMILL ALSO:

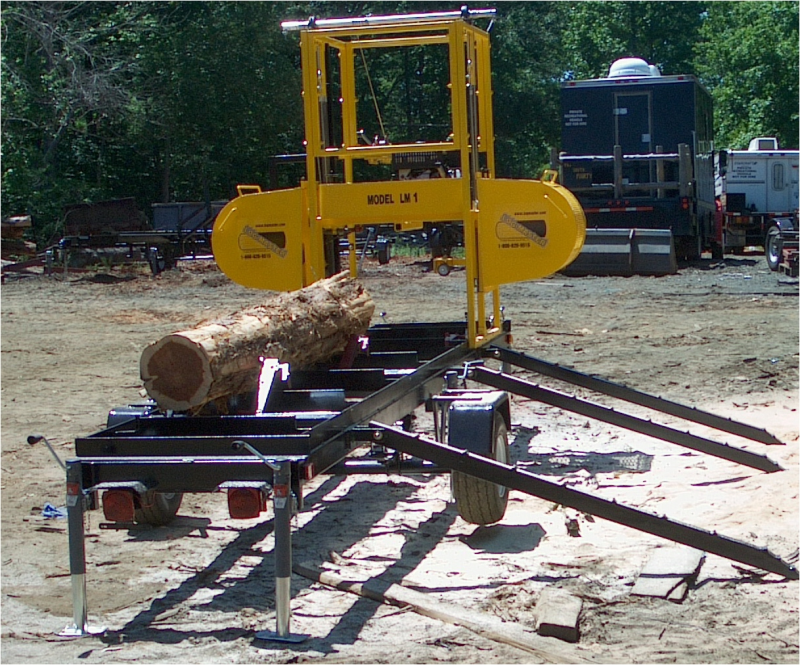

High-Way trailer package with 16′ log cut made out of 3″x 3″x 1/4″ thick square tubing with 3″x3″x1/4″ track welded to the frame (6 quick level jacks, log loading arms and log loading / turning winch).
14 HP ON A TRAILER RETAIL PRICE $8,214.65 SALE PRICE ONLY $7,400.00 SAVINGS OF $814.65 DOLLARS
18 HP ON A TRAILER RETAIL PRICE $9,720.44 SALE PRICE ONLY $8,700.00 SAVINGS OF $1020.44 DOLLARS
30HP ON A TRAILER RETAIL PRICE $10,331.50 SALE PRICE ONLY $9,300.00 SAVINGS OF $1,031.50 DOLLARS
Standard Features Include:
- A powerful 14 HP Kohler manual start gas engine. (Optional 18 HP & 30HP electric start Kohlers).

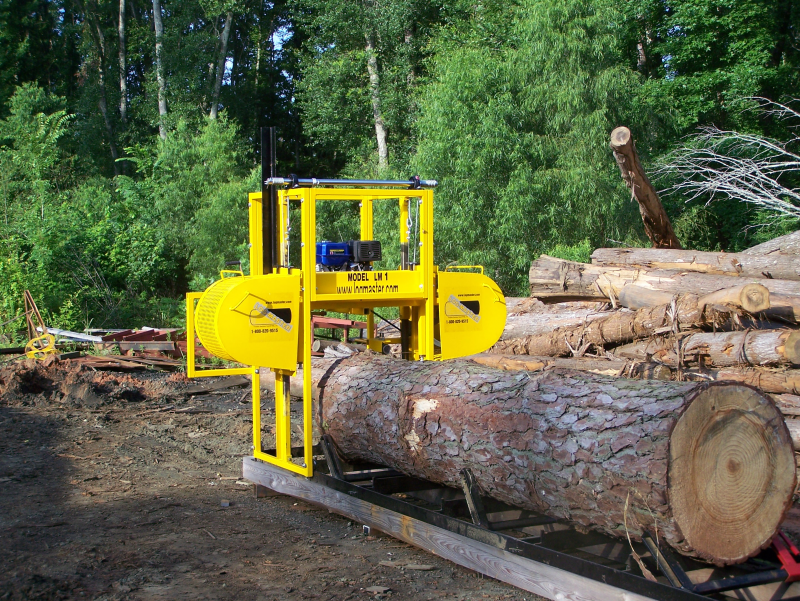

- Clean side cut sawmill.
- 30″ diameter log capability.
- 2 – 5′ track sections and 1 – 6′ track section (16′ total length).
- Track frame made from 3″x3″x1/4″ thick steel.

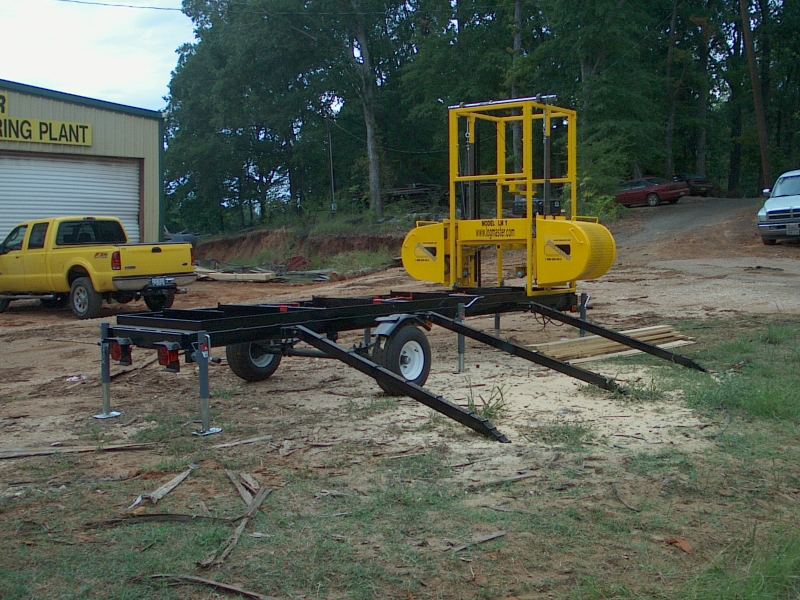

- Hand crank height adjustment
- 19″ diameter solid steel band wheels

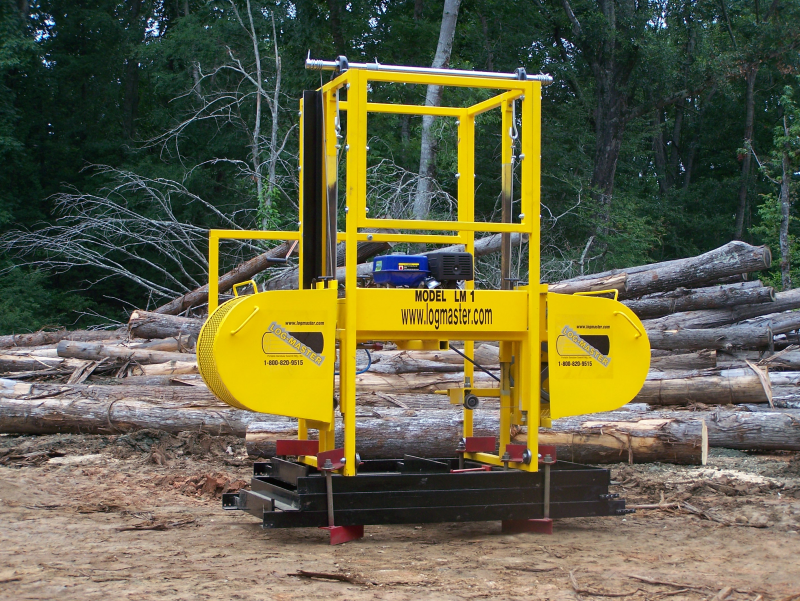

- Log-Master greasable guide rollers.
- 1-1/4″ x 14’7″ band saw blade
- Built in lube system on the mill
- Adjustable guide arm in and out

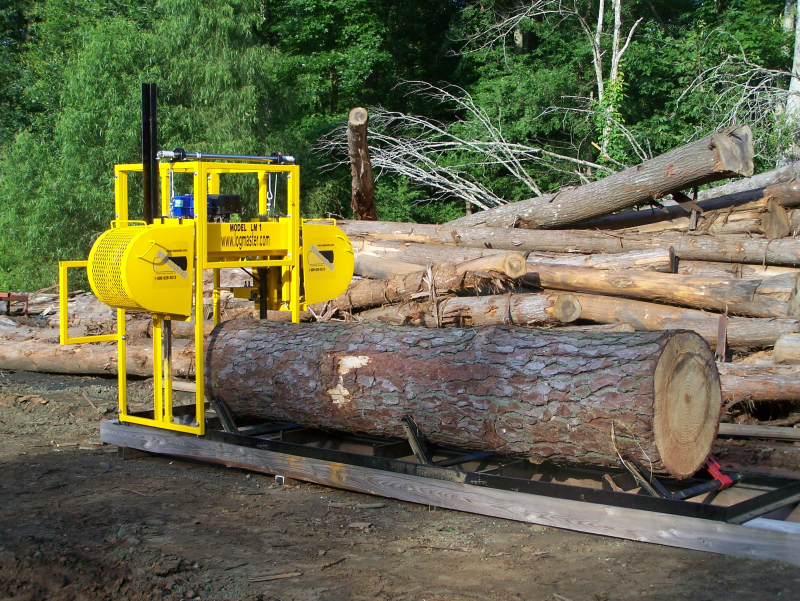

- Positive band blade tensioning system
- Easy to read measuring adjustment for consistent board thickness
- Centrifugal clutch use to drive the band blade so the blade stops when you are at idle
- 2″ drive and idler shaft with bearings on each side of the band wheels. No side load on band wheel bearings.
- 3 quick set adjustable log dogs and 3 back dogs that work together so you don’t have to work each side of the mill when you are clamping your logs.
- You can cut down to 1″ bottom board
OPTIONS FOR THE LM 1 SAWMILL ARE:
- 18 HP Kohler electric start gas engine.
- 30 HP Kohler electric start gas engine
- High-Way trailer package with 16′ log cut (quick level jacks, log loading arms and log loading / turning winch).
- 6′ extra ground mount track with log clamp and back dog.
- 1-1/2″, 2″, 3″ and 4″ log taper adjustments.
